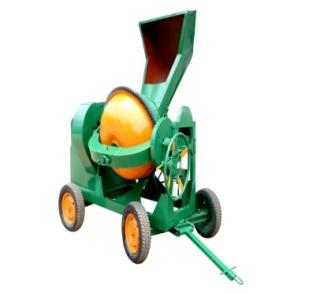

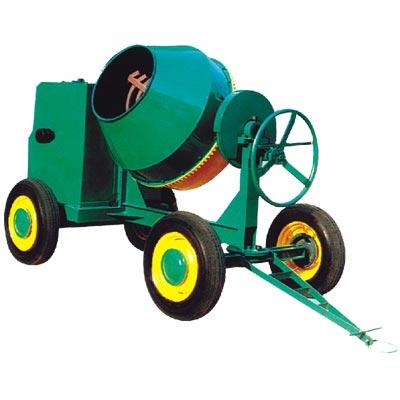

Concrete Mixers are made out of rolled steel sections, which are designed and engineered for optimum stability and durability as required by the construction industry. The machine is perfectly aligned, so as to increase the life of the components. We have a deep commitment towards quality.
Each machine is tested before its dispatch. Our after sales service is among the best in the industry. Any of our existing customers will vouch for our prompt and efficient service.
| Particulars | Without Hopper | With Hopper | With Hydraulic Hopper |
|---|---|---|---|
| Capacity | |||
Unmixed |
10 cft (280 Its) |
10 cft (280 Its) |
|
Mixed |
7 cft (200 Its) |
7 cft (200 Its) |
7 ctf (200 Its) |
Dimensions |
|
|
|
Length without towbar |
96" (2.44m) |
105"(2.67m) |
99" (2.52m) |
Height |
70" (1.78m) |
92"(2.34m) |
78" (2.10m) |
Width |
45" (1.14m) |
90" (2.29m) |
108"(2.74m) |
Powered by* |
6 HP Diesel engine / 3 HP Electric Motor |
6 HP Diesel engine / 5 HP Electric Motor |
6 HP Diesel engine / 5 HP Electric Motor |
Chasis |
All steel construction |
All steel construction |
All steel construction |
Drum Speed |
20 RPM |
20 RPM |
20 RPM |
Wheels |
Tyre/ Cast iron/ Mild Steel |
Tyre/ Cast iron/ Mild Steel |
Tyre/ Cast Iron/ Mils Steel |
Weight |
600kgs Approx |
1000 kgs Approx |
900 kgs Approx |
(with prim mover) |
(with prime mover) |
(with prime mover) |
